Delivery & InstallationInformation for offloading and installing Shelter Works Shelters

Compare this to traditional on-site construction which typically involves the scheduling and coordination of multiple construction professionals over many weeks. It requires a tightly orchestrated timeline that can be easily delayed by weather or contractor holdups.

Shelter Works' quick and easy installation process reduces labor costs, minimizes job site complexity and eliminates unforeseen downtime.

Our Process

Listed below is a step-by-step review of the offloading and installation processes.  Please note that all lifting, loading, unloading and installation should be performed by qualified, experienced personnel in accordance with the instructions provided by the project engineer or project owner.

Also, for best installation results the slab upon which the field equipment shelter sits must be true and level to a maximum surface variance of 3/16” where the building will interface with the slab. The slab immediately surrounding the building shall be sloped away at a pitch of ½” per foot to promote proper drainage and eliminate the potential of standing water around the building. At the time of installation the slab shall be clean and dry.

step1

Prepare & Lift the Building

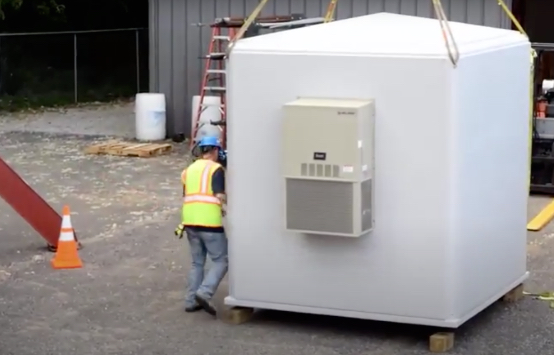

Using shackles, attach 4 nylon straps to all 4 lifting eyes provided and lift from above using a single-point hook. Straps should be at least 75% the length of the shelter (e.g.: If the shelter’s length is 20’, the straps should be at least 15’ long.) Lift the field equipment shelter from the trailer.

step2

Set the Building
Orient and set the building in the desired location on the slab. (Leave straps attached through step 11)

step3

Drill Corners
In two opposite corners drill a 3/8” hole through the base flange of the field equipment shelter and into the slab. Temporarily pin the two corners to keep the building from moving. (3/8” diameter rod works great.)

step4

Align Walls
Before being anchored, the walls are somewhat flexible and may need to be temporarily braced, as needed, to ensure they are straight before drilling any more holes. A typical solution is to use lumber cut to length to span from one wall to the opposite wall. A tight string line from end to end on the outside of the wall will allow you to determine when the wall is straight.

step5

Drill Base Flange Holes
Mark and drill all remaining anchor bolt holes through the base flange and slab (in accordance with anchor bolt manufacturer’s specifications) at the spacing as indicated on sheet three of the submittal drawings.

step6

Trace Building on Slab
With a construction pencil or marker, trace the outline of the exterior of the building on the slab.

step7

Clear Drilling Debris
Lift building off slab and sweep away all debris from drilling.

step8

Gasket the Base
Apply a row of Conseal base gasket to the slab, midway between the drilled holes and the traced outline of the field equipment shelter. Be sure that any Conseal butt joints are tight so that when they are compressed they form a continuous seal. In colder weather, warm up the Conseal to 75°F before applying to the slab.

step9

Lower the Building
Lower the building down within a couple of inches of the slab.

step10

Align Pins Through Drill Hole
Use alignment pins through the base flange and into the drilled holes in the slab in the four corners and at the midway point of each wall to guide the building down the remaining couple of inches onto the slab.

step11

Partially Tighten All Anchor Bolts
Insert expansion anchor bolts into all holes and partially tighten.

step12

Tighten All Bolts
Go around to each bolt a few times, tightening a little more each time until the bolts are all snug and the base gasket is compressed to not more than a ¼” thick.

step13

Finalize and Weatherproof All Remaining Attachments
Reattach any items that were shipped loose such as rain hoods and extra lights. Be sure to weatherproof these items with the provided caulk. If you make any other penetrations through the walls or roof for conduits, fasteners, etc., be sure to seal up the holes with a silicone caulking to prevent water infiltration.

Videos

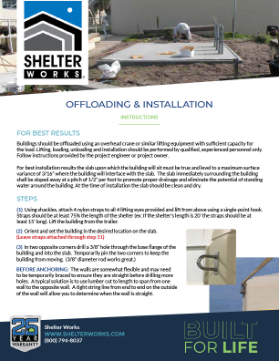

Offloading Instructions

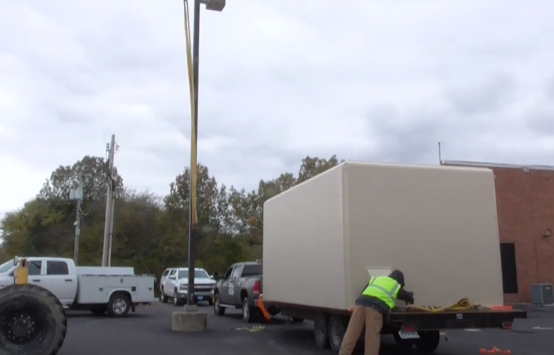

Watch this video for more information on what to do when your shelters shows up.
